Parameter:
1.Input voltage:DC5V-24V
2.Channel quantity:6pcs channel
3.Output current:10A/Channel,60A in total
4.Size:40*80*160MM
5.Weight:0.4KG
Operating Instructions:
1.4 Digit Display Screen:
When connected to the DMX signal console,the decoder will display dXXX.XXX stands for 3 numbers,range from 001 to 512.
If not connected to DMX signal console,the decoder will display its built-in program.Display screen will show XXPX,The first XX shows speed.The last X shows the built-in program sequence.It has 7 built-in programs from P1-to P7.Its display speed range from 01 to 99.
2.4 Key Buttons:
When it is connected to DMX console,press+or-button to adjust the DMX address.You can adjust it to the address you need,then press SET button to save address setting.It will automatically be your saved address when connected to DMX console next time.
Without connecting the DMX console,the decoder will display its built-in programs.Through pressing+or-button,you can adjust display speed of programs.The program can be changed by pressing MODE button.Pressing SET can save programs and display speed.When you power on the decoder next time,it will automatically be your saved built-in programs and display speed.
HOW TO USE:

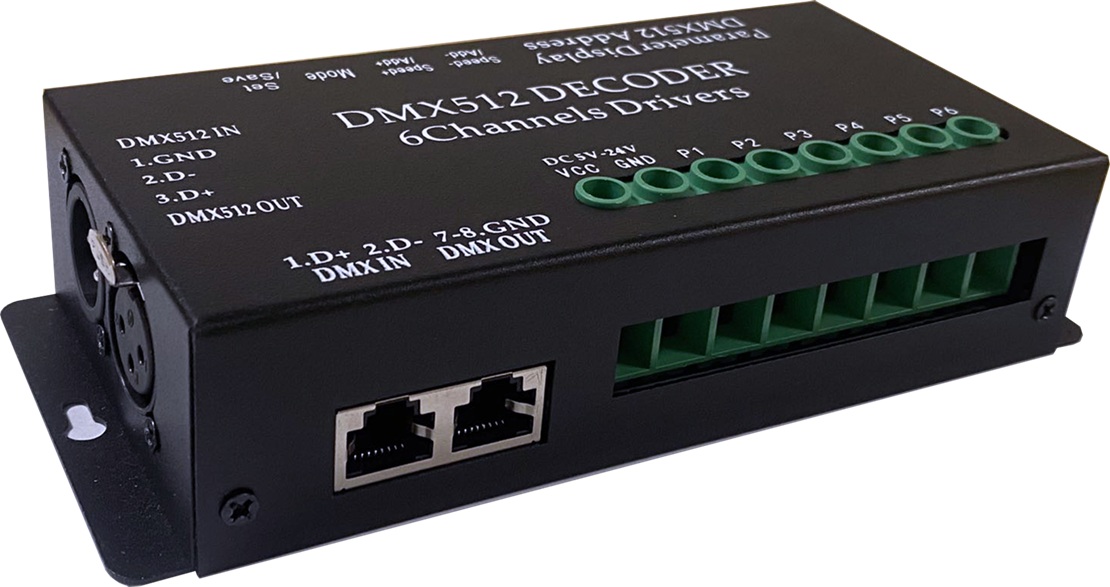

1.The wiring method:
1.VCC is connected to the positive pole of the power supply and GND is connected to the negative pole of the power supply.The voltage range is DC5V-24V.
2.6 Ports:P1,P2,P3,P4,P5 and P6,which are connected to lamps(3 channel RGB,4 channel RGBW,monochrome or 5 channel).The positive pole of the lamp should be connected to VCC,and red,green and blue correspond to P1,P2 and P3.
3.Through network cable or XLR cable which can be connected to the console.Multiple decoders can also be connected to control different areas.
2.Disconnecting console
1.Power on,4 digits will be displayed.
2.The first two digits displayed indicate the program speed.Press“speed-”to up and press“speed+”to down.01 is the fastest,99 is the slowest.
3.The last two digits represent the built-in program of the controller.There are 7 programs(01-07).Press"Mode"to select a program.
4.After the program and speed are set,press“Set”(Save)to save.
3.Connecting console
1.Power on,display d001.
2.Adjust the light through the console.
4.Multiple decoder connections
1.Connect multiple decoders via network cable or XLR cable.
2.The operation of different address codes:
Each decoder is adjusted to d001(press"+"or"-"),the synchronized state.
3.The operation of different address codes:
The first decoder is set to d001,the second decoder is set to d007,and so on(add 6 each time).
New function added
1.After the controller is connected to DMA console,dXXX is displayed,wherein XXX is dmx address.Press MODE to switch to the 8-channel mode,and AXXX is displayed.
2.8-channel mode definition:Channel 1-6 represent the brightness and grayscale values of the controller 1-6 channels,channel 7 represents effects,and channel 8 represents speed.Pressing the MODE key again will switch back to the normal 6-channel mode of dXXX.
If you need to maintain the settings,press the SET key.
3.There are a total of 16 switching effects in channel 7.The putter value switches to the next effect every 16,and channel 8 is the speed,which is adjusted every 4 numerical values.
4.Definition of channel 7 switching effect:
1.0-15:Like dXXX mode,output color brightness values for 1-6 channels based on 1-6 channel push rod values.
2.16-31:6 channels will flash on and off,with the same duration.The speed is determined by the value of channel 8,the smaller the value,the faster the flash.
3.32-47:6 channels will flash on and off,flash once,and then adjust the time for channel 8 to turn off.
4.48-63:Channels 123 and 456 turn on and off in reverse.With 123 on,456 off.Channel 8 adjusts the speed.
5.64-79:RGB jump mode,switch from 14 to 25,switch from 36,and the brightness is the respective grayscale value.Channel 8 adjusts the speed.
6.80-95:7-color jump mode,like program 5.
7.96-111:Fast gradient according to the grayscale value of each channel,adjustable speed.
8.112-127:Slowly gradient the grayscale values of each channel,adjustable speed.
9.128 143:Slightly faster gradient mode 3,adjustable speed.
10.144-159:Slow gradient of mode 3,adjustable speed.
11.160-175:RGB fast gradient 13 gradient 24 gradient 36 gradient.
12.176-191:RGB slow gradient 13 gradient 24 gradient 36 gradient.
13.192-207:7-color slow gradient.
14.208-223:6 channels monochrome running.
15.224-239:6 channels monochrome running back and forth.
16.240-254:6 channels is off,then all horse-race-lamp on.
17.255:Like program 1,it is statically lit by grayscale values of channels 1-6.
